Fiber optic splice closure (FOSC), horizontal type, mechanical sealing, 24 fibers, max 24 bunchy fibers

TAEPO - Professional Chinese Manufacturer Delivering Fiber Optic Splice Closure(FOSC) with Reliable Performance !
What does Fiber Optic Splice Closure(FOSC)  do?


    DESCRIPTIONS

This horizontal-type fiber optic splice closure (TP-3529-24) is a compact, durable, and highly efficient solution for managing and protecting fiber optic splices in various installation environments. It features a mechanical sealing system, allowing for a quick, tool-free setup without the need for heat or adhesive materials. Designed to accommodate up to 24 spliced fibers and a maximum of 24 bunchy fibers, this closure is ideal for small-scale optical network deployments, including Fiber to the Home (FTTH) and short-distance connections.

With a compact footprint of 207x207x45 mm, the FOSC is optimized for installations with limited space while maintaining excellent fiber management capabilities. It is equipped with two inlets and two outlets, providing flexible cable routing options for cables with a maximum diameter of 15 mm. The mechanical sealing ensures long-lasting protection against environmental threats such as water, dust, and UV exposure, making it suitable for outdoor installations.

Engineered for easy access and re-entry, this FOSC is perfect for ongoing network maintenance and upgrades, allowing technicians to work efficiently without compromising the fibers. Its lightweight construction, coupled with robust protection, makes it an excellent choice for maintaining small optical networks in harsh environments.

    MAIN FEATURES

• Horizontal Design: Space-saving, square design for easy installation in confined spaces.
• Mechanical Sealing: Tool-free sealing system, eliminating the need for heat or adhesives.
• Capacity: Supports 24 spliced fibers, with a maximum of 24 bunchy fibers.
• 2 Inlets and 2 Outlets: Allows for flexible cable entry and exit points for diverse network configurations.
• Max Cable Diameter: Supports cables with diameters up to 15 mm.
• Compact Size: Optimized for space-constrained installations, with dimensions of 207x207x45 mm.
• Weatherproof: Sealed against environmental contaminants such as water and dust.
• UV-Resistant: Materials are resistant to UV degradation, suitable for outdoor applications.
• Waterproof Design: Rated IP68 for complete protection against water ingress.
• High Tensile Strength: Provides robust support for heavy-duty cables without compromising closure integrity.
• Splice Tray Capacity: Includes trays for up to 24 fiber splices, ensuring organized fiber management.
• Corrosion Resistant: Materials are corrosion-resistant, ideal for wet and outdoor environments.
• Shock Resistant: Built to withstand mechanical shocks and impacts.
• Temperature Resistant: Operates reliably in a wide temperature range from -40°C to +80°C.
• Durability: Engineered for long-term use with minimal maintenance requirements.
• Aerial and Underground Use: Suitable for both underground burial and aerial mounting installations.
• Easy Access: Tool-free re-entry for fast and efficient maintenance.

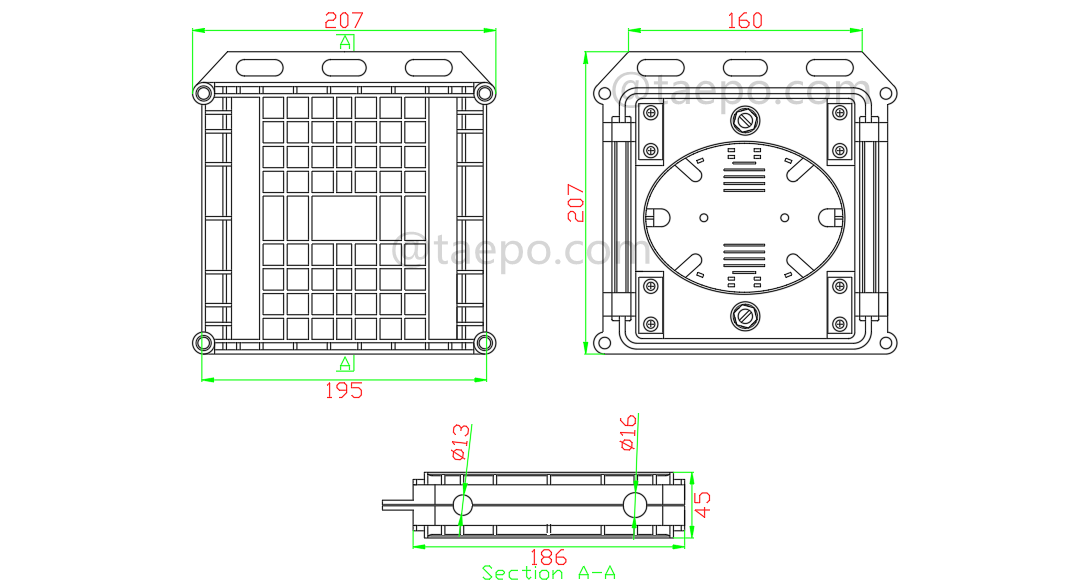

    SCHEMATIC DIAGRAMS

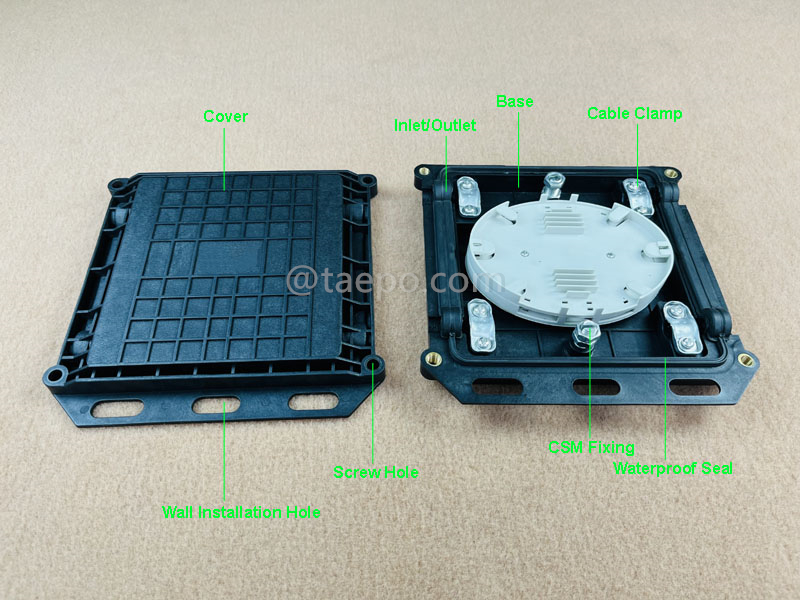

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
