Fiber optic splice closure (FOSC), horizontal flip type, mechanical sealing, 12 fibers, max 48 bunchy fibers

TAEPO - Your Professional Source for Fiber Optic Splice Closure(FOSC), Expert Chinese Manufacturing at Its Best !
What does Fiber Optic Splice Closure do?


    DESCRIPTIONS

This horizontal flip-type fiber optic splice closure (TP-3518) offers an innovative design for managing and protecting fiber splices in a variety of outdoor environments. Equipped with a mechanical sealing system, it provides efficient installation and robust environmental protection without the need for specialized tools or adhesives. Designed for smaller-scale fiber installations, this closure can handle a maximum of 48 bunchy fibers, making it suitable for residential or small commercial applications. With a compact size of 335x160x69 mm, it is ideal for space-constrained installations while ensuring organized fiber management.

The closure is engineered with two inlets and two outlets, providing flexible entry and exit points for cables with a maximum diameter of 22 mm. Its mechanical sealing ensures excellent protection against water, dust, and extreme weather conditions, guaranteeing long-term performance and low maintenance. The flip-type opening mechanism allows for easy re-entry and adjustments, reducing downtime for repairs or network expansions. This FOSC is particularly suited for Fiber to the Home (FTTH) and short-distance fiber optic networks.

Its sturdy design and flexible configuration offer both the protection and adaptability needed in modern network infrastructures. Whether for aerial or underground installations, this FOSC provides reliable and user-friendly management for small to medium-sized fiber deployments.

    MAIN FEATURES

• Advanced internal structure design.
• Horizontal Flip-Type Design: Flip-opening mechanism for quick and easy access during maintenance.
• Mechanical Sealing: Ensures fast installation and sealing without the use of heat or adhesives.
• Capacity: Supports expandable to handle up to 48 bunchy fibers.
• 2 Inlets and 2 Outlets: Flexible entry and exit points for fiber cables.
• Max Cable Diameter: Accommodates cables up to 22 mm in diameter.
• Compact Size: Small form factor at 335x160x69 mm, ideal for tight installation spaces.
• Weatherproof: Resistant to environmental conditions such as rain, dust, and temperature fluctuations.
• Waterproof Design: IP68 rated to prevent water ingress.
• High Tensile Strength: Supports heavy cables without compromising closure integrity.
• Flip Opening Mechanism: Allows easy re-entry for inspection or repairs.
• Corrosion Resistant: Built with materials that resist corrosion, ensuring longevity.
• Easy Installation: No special tools required for mechanical sealing and cable management.
• Shock Resistance: Built to withstand mechanical impacts and vibrations.
• Splice Tray Capacity: Includes trays that can support up to 12 fibers each.
• Flexible Configuration: Suitable for various network setups including FTTH and FTTB.
• Long-Term Durability: Designed to last in harsh conditions with minimal maintenance.
• Cable Management: Built-in trays and guides for organized fiber layout.
• Sealed Grommets: For secure and leak-proof cable entry and exit.
• Splice tray included: Hinged or removable tray manages fiber routing and fusion splice holders.
• Anti-bending radius control: Designed to maintain minimum bend radius for G.652/G.657 fibers.
• Easy tray removal: Snap-fit tray or hinge for rotating out individual trays.

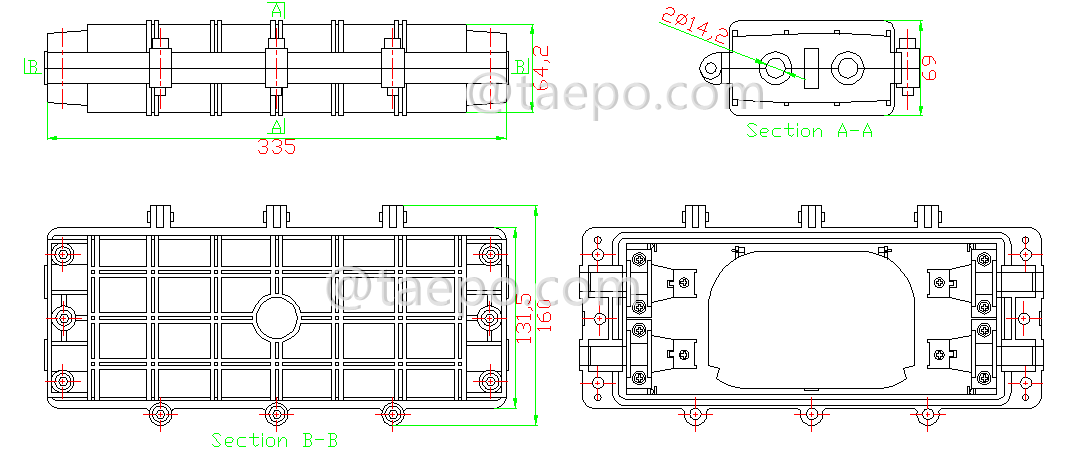

    SCHEMATIC DIAGRAMS

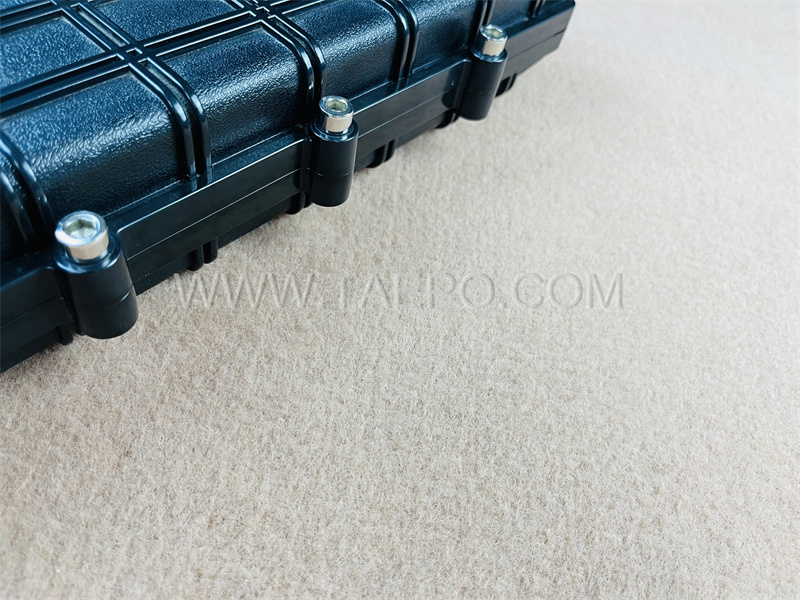

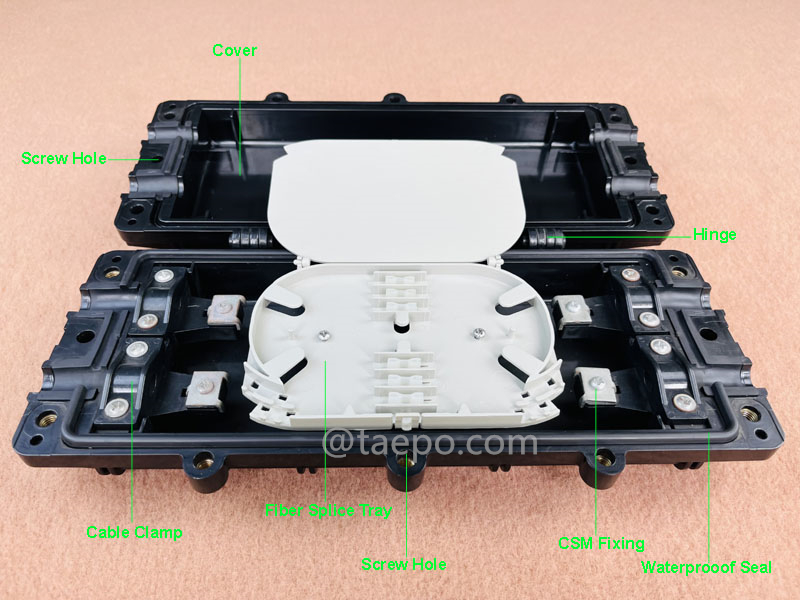

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
