Outdoor 20 pairs connection box 1B 11 for LSA module, 250x175x111mm, RFP housing, snap-on locking, with back mount frame, without LSA module, without lock and carved logo

TAEPO - Specialized in Connection Box for LSA Module, Professional Chinese Manufacturer for Versatile Network Solutions !
What is a Connection Box used for?

   DESCRIPTIONS

20 pairs Distribution point box / 20 pairs DP box(TP-1708-20B) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

This 20 pairs box can be installed with 10 pairs LSA disconnection module ( you can visit details here ) which is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    MAIN FEATURES

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

    SCHEMATIC DIAGRAMS

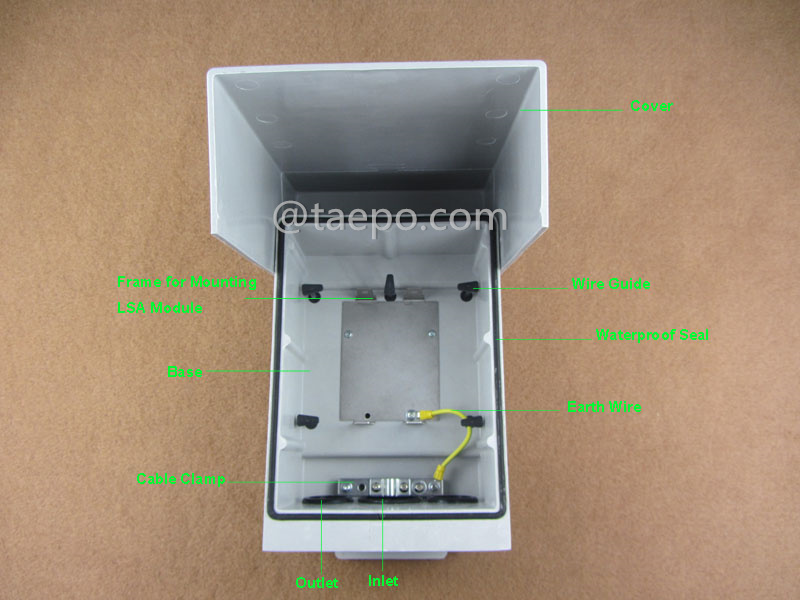

    ILLUSTRATION PICTURES


    PACKING PICTURES

    ORDER DATA
