Fiber optic splice closure (FOSC), vertical type, heat shrink sealing , 48 fibers

TAEPO - Specialized in Vertical Fiber Optic Splice Closure, Professional Chinese Manufacturer for Versatile Network Solutions !
What does Vertical Fiber Optic Splice Closure stand for?


    DESCRIPTIONS

This vertical fiber optic splice closure (TP-3532-48B) is engineered to meet the rigorous demands of modern optical networks, offering secure protection for fiber splicing and distribution. Designed for both indoor and outdoor installations, it can be mounted on poles, walls, or within manholes, providing flexibility and durability for various environments. The closure uses a heat shrink sealing method that ensures long-term waterproofing and environmental protection, making it highly suitable for areas exposed to moisture, dust, and UV light.

With a robust capacity for up to 48 fibers and 48 bunchy fibers, this FOSC is ideal for high-density network applications, such as telecom, CATV, and broadband networks. The heat shrink sealing further enhances its protection, offering a tight, enduring seal that maintains fiber integrity even under challenging conditions. The closure includes 2 cable inlets and 2 outlets, supporting maximum versatility in fiber configurations and enabling easy network expansion.

This model has a compact design with dimensions of 300 mm in height and 120 mm in diameter, suitable for confined spaces without compromising fiber organization. It supports cables with a maximum diameter of 21 mm, providing adaptability for various cable types and sizes. Durable, efficient, and user-friendly, this FOSC offers reliable fiber protection and simple installation to keep your network functioning smoothly.

    MAIN FEATURES

• Heat Shrink Sealing: Provides an airtight, long-lasting seal against moisture and dust.
• High Fiber Capacity: Holds up to 48 fibers, allowing for high-density installations.
• Bunchy Fiber Accommodation: Supports up to 48 bunchy fibers for diverse configurations.
• Compact Vertical Design: Space-efficient size of 300 mm height and 120 mm diameter.
• 2 Inlet and 2 Outlet Ports: Facilitates versatile network configurations.
• Supports Large Cable Diameter: Compatible with cables up to 21 mm in diameter.
• Outdoor-Ready: Built to withstand environmental elements, including water and UV.
• High Durability: Resistant to impact and external forces.
• Multiple Installation Options: Suitable for aerial, wall, and manhole setups.
• Cable Management: Organized trays ensure secure fiber arrangement.
• IP68 Protection: Waterproof and dustproof rating for reliable outdoor performance.
• Single & Multi-Mode Compatible: Works with various fiber cable types.
• Long-Term Fiber Protection: Provides lasting environmental resistance.
• Network Expansion Ready: Easily accommodates future fiber additions.
• Rugged Construction: Built with high-strength, UV-resistant materials.
• Cable Retention System: Holds cables firmly in place for stability.
• Secure Sealing: Heat shrink method prevents air and water ingress.
• Minimal Signal Loss: Internal organization minimizes optical signal interference.
• Maintenance-Friendly: Allows re-entry without compromising the heat shrink seal.

    SCHEMATIC DIAGRAMS

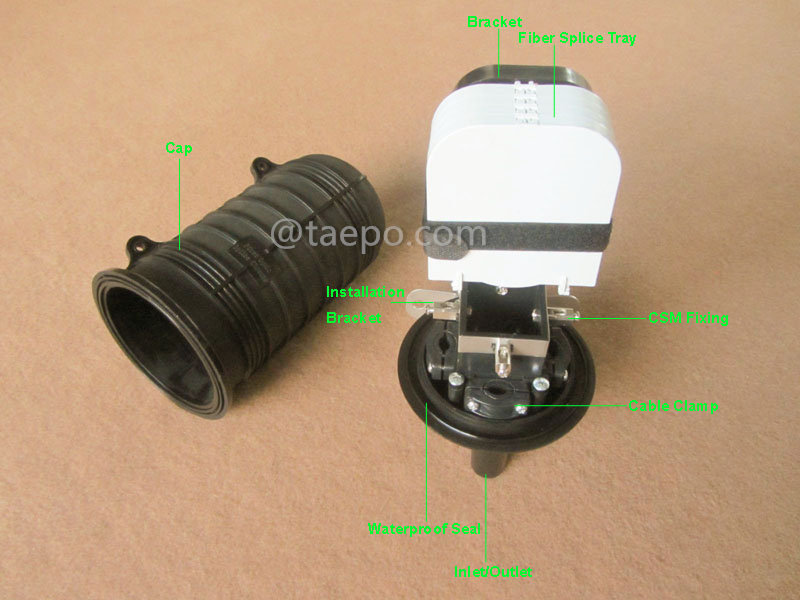

    ILLUSTRATION PICTURES

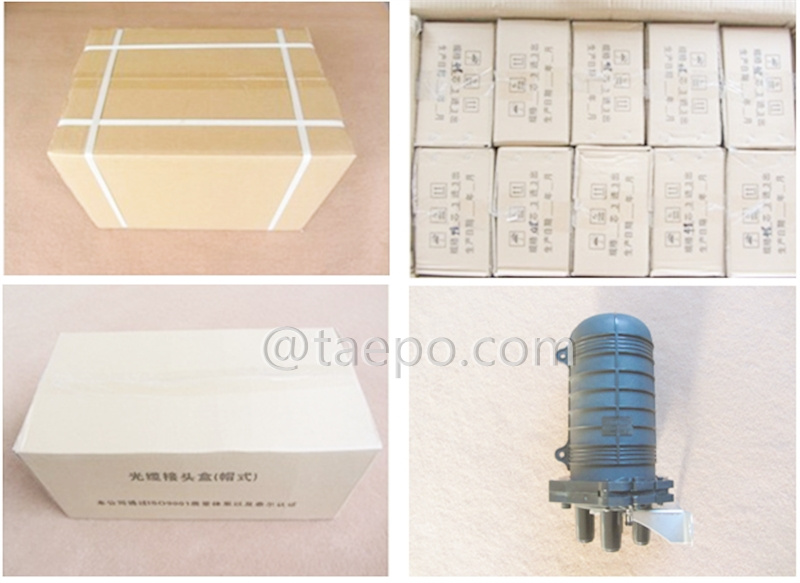

    PACKING PICTURES

   ORDER DATA
