What is a 10 pairs LSA disconnection module with color label ?
DESCRIPTIONS
10 pairs LSA disconnection module with color label (TP-1201-10CL) is used throughout the distribution level, in the main distribution frames (MDF), in the cross connection cabinets (CCC) or in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

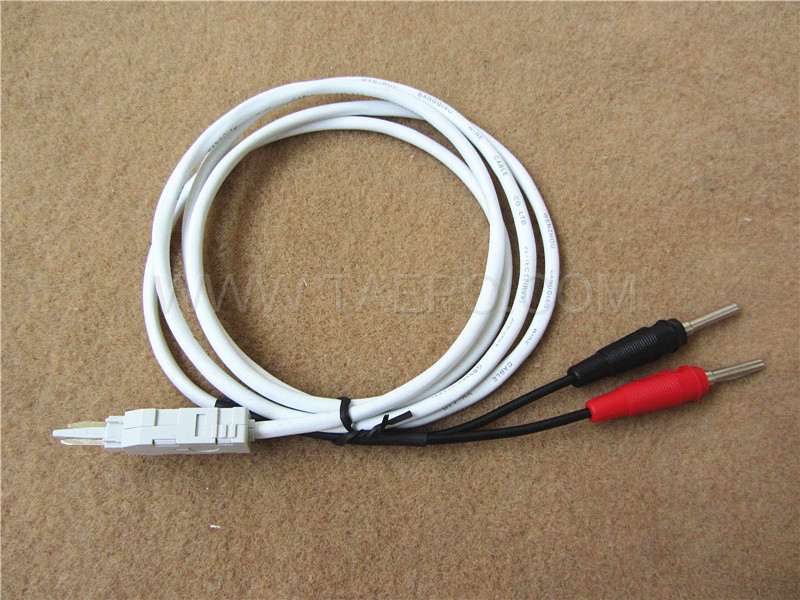

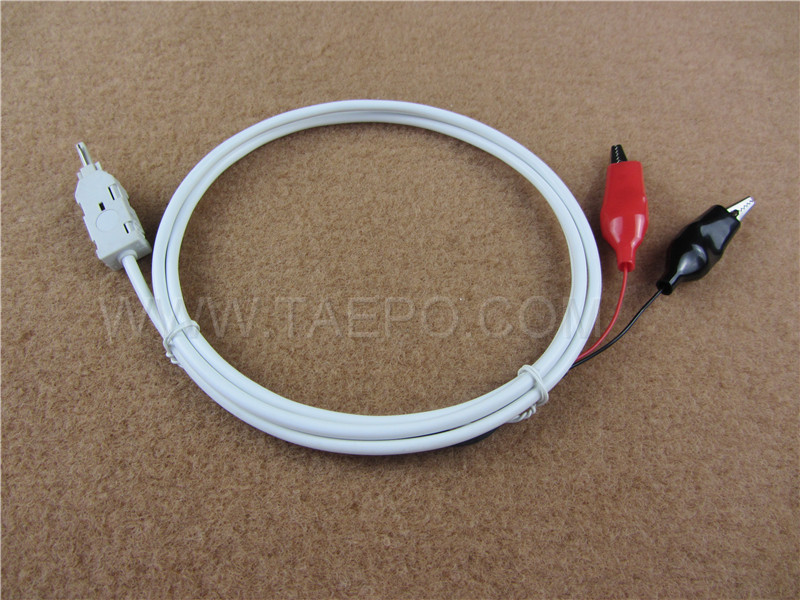

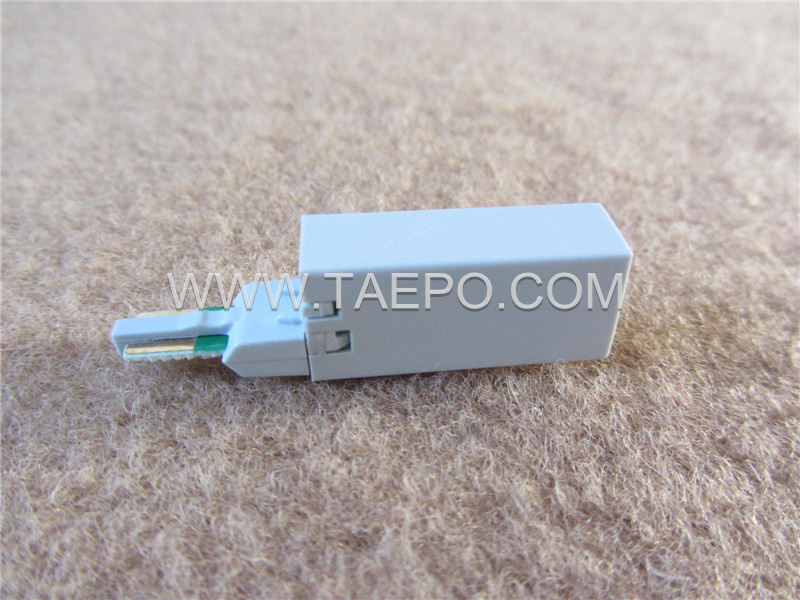

10 pairs LSA disconnection modules use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification. The center contact point can also be used for overvoltage or current protection.
MAIN FEATURES
- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Compact Size: The module is designed to be small and space-saving, making it ideal for use in crowded telecommunications cabinets or enclosures.
- High-density Connection: The 10 pairs LSA disconnection module allows for the connection of multiple cables in a single location, making it easier to manage and maintain the telecommunications infrastructure.
- Disconnection Capability: The module has a disconnection function, which allows individual cables to be disconnected without affecting other cables connected to the module.

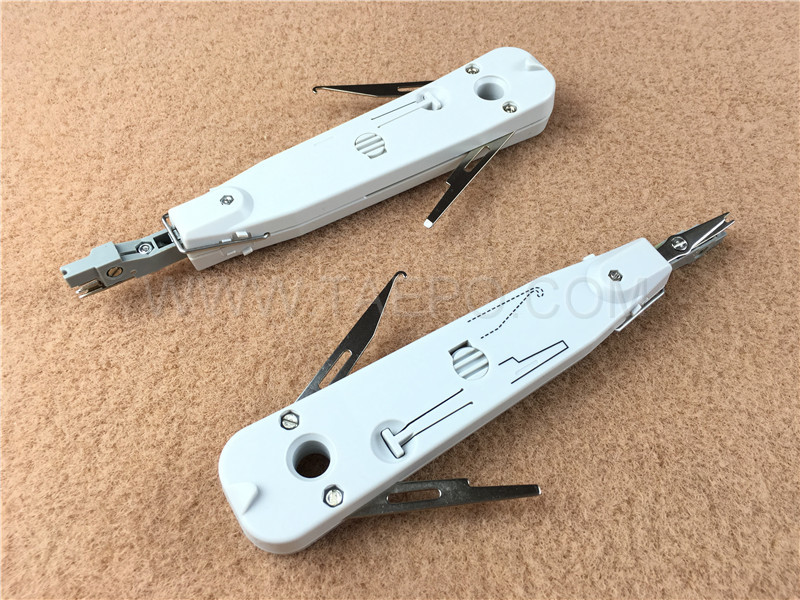

- Easy Installation: The module can be quickly and easily installed using insetion tool by one-push and and back mount frame for modular installations.
- Excellent Conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.
- Durability: The LSA disconnection module is designed to be durable and withstand the rigors of daily use.
- Versatility: The LSA disconnection module can be used in a wide range of applications, including data centers, telecommunications networks, and security systems.
- Compatibility: The LSA disconnection module is compatible with a wide range of wiring systems, making it a versatile and flexible solution for many different applications.
- 10-pair Configuration: Provides terminations for up to 10 twisted pairs of copper wires.

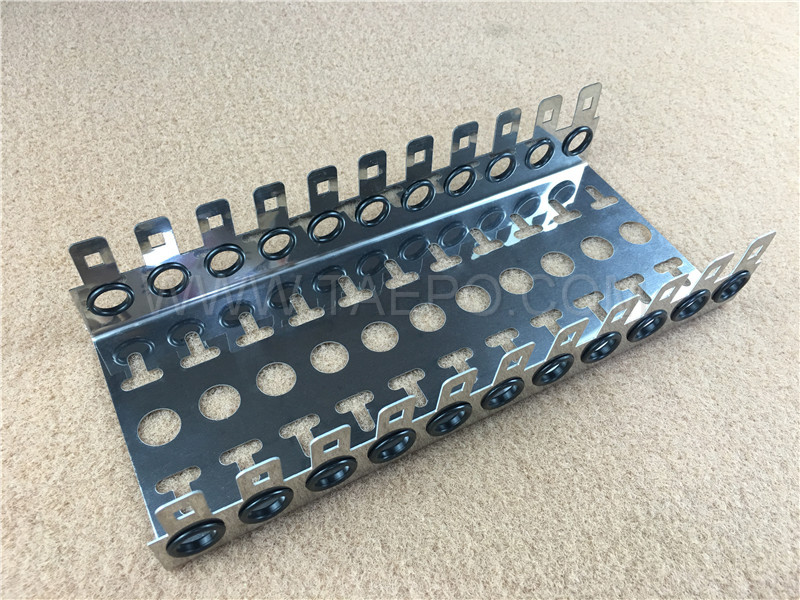

- Standard Footprint: Fits industry-standard 10-pair back mount frame.
- Color Labeling: Aids in easy identification and pairing of wires.
- Modular Design: Stackable for expanded connectivity.

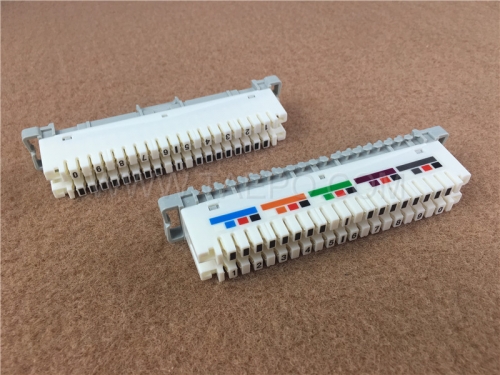

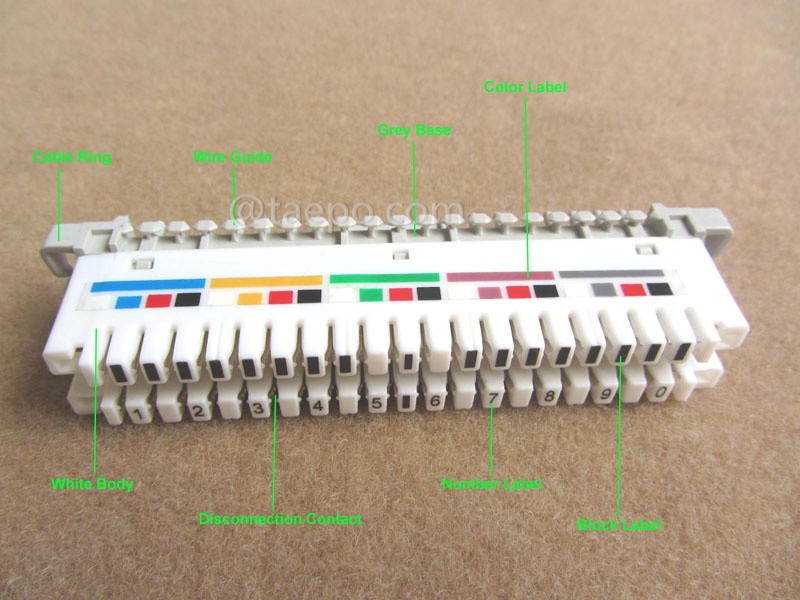

ILLUSTRATION PICTURES

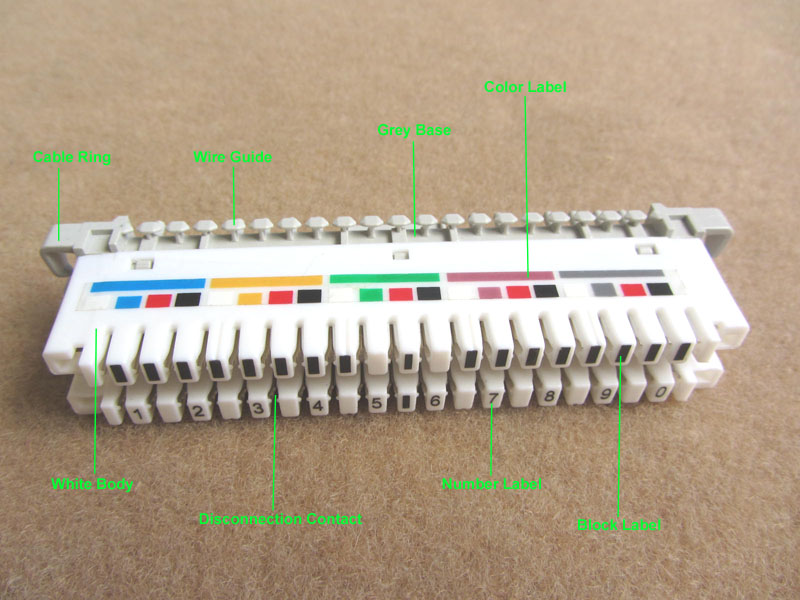

SCHEMATIC DIAGRAMS
PACKING PICTURES
ORDER DATA
| Item No |
Description |
| TP-1201-10CL |
10 pairs LSA disconnection module with color label |
RELATED PRODUCTS

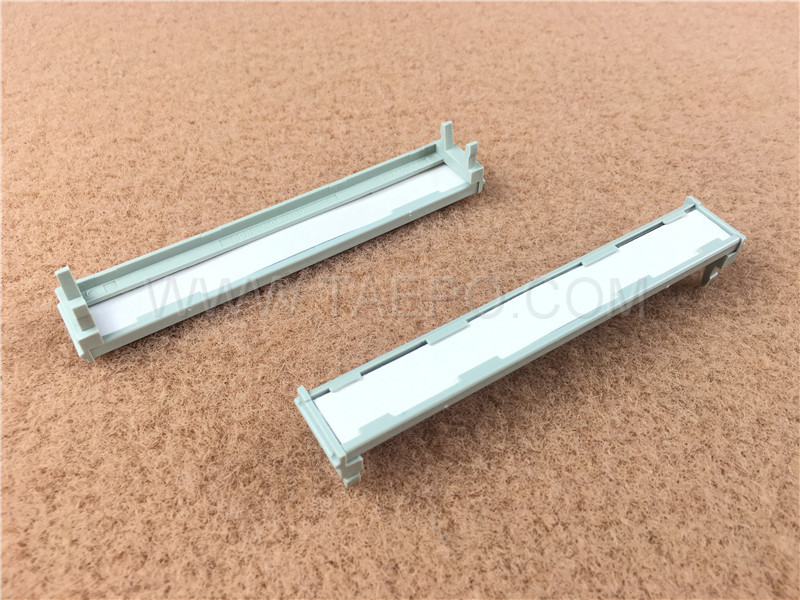

TP-1214-10D 10 pairs hinged label holder for LSA module, double sided
